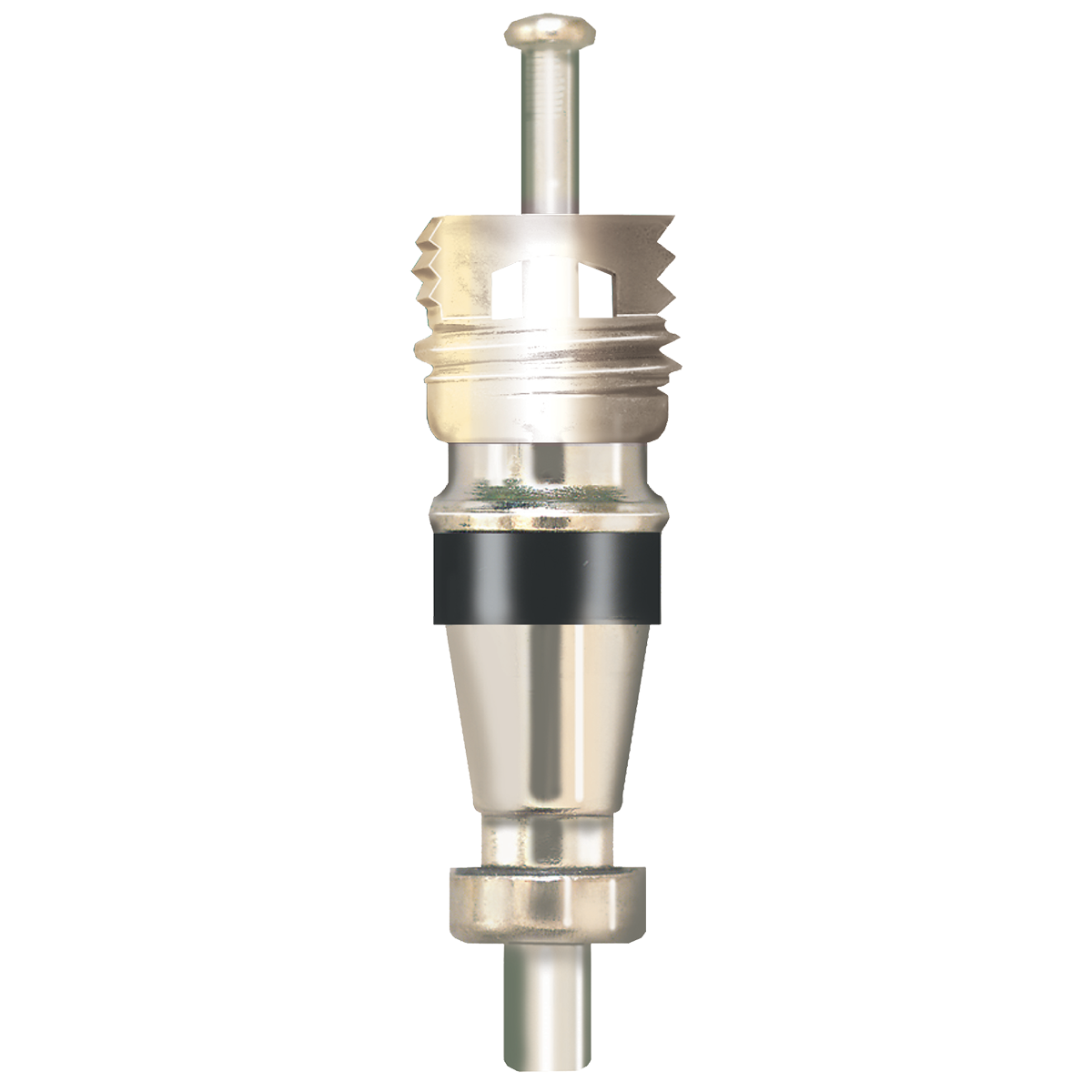

Valve Cores and Tool

Product Number: A31999-100

1/4" Valve cores

Features
Positive stop valve core for A/C system valves
Operating pressure 800 psi
Continuous operating temp -20° to 220° F (-28° to 104° C)
Nickel plated brass
PTFE barrel gasket seal
Neoprene cup washer
Installation torque 3 to 5 in/lbs
Valve Core Compatible Core Chambers:
– ISO standard 7442
– T&R Standard Bore Chamber No. 1
– AHRI Standard 720
Product Details
Documentation
Warranty
Videos And Images
UPC
Country Of Origin

Related Products

Copper Access Union

PART NO.
A31199

Description
1/4" OD

View Model
Valve Cores and Tool

PART NO.
A32004

Description
1/4" Valve core tool w/storage for six valve cores

View Model
Valve Core Torque Tool

PART NO.
A32008

Description
1/4" Valve core torque tool

View Model
Valve Core Torque Tool

PART NO.
A32008-BX

Description
1/4" Valve core torque tools in display box (12 per box)

View Model
Evacuation Recovery Tool

PART NO.
A32100

Description
Evacuation/recovery tool

View Model
