Refrigerant Hoses

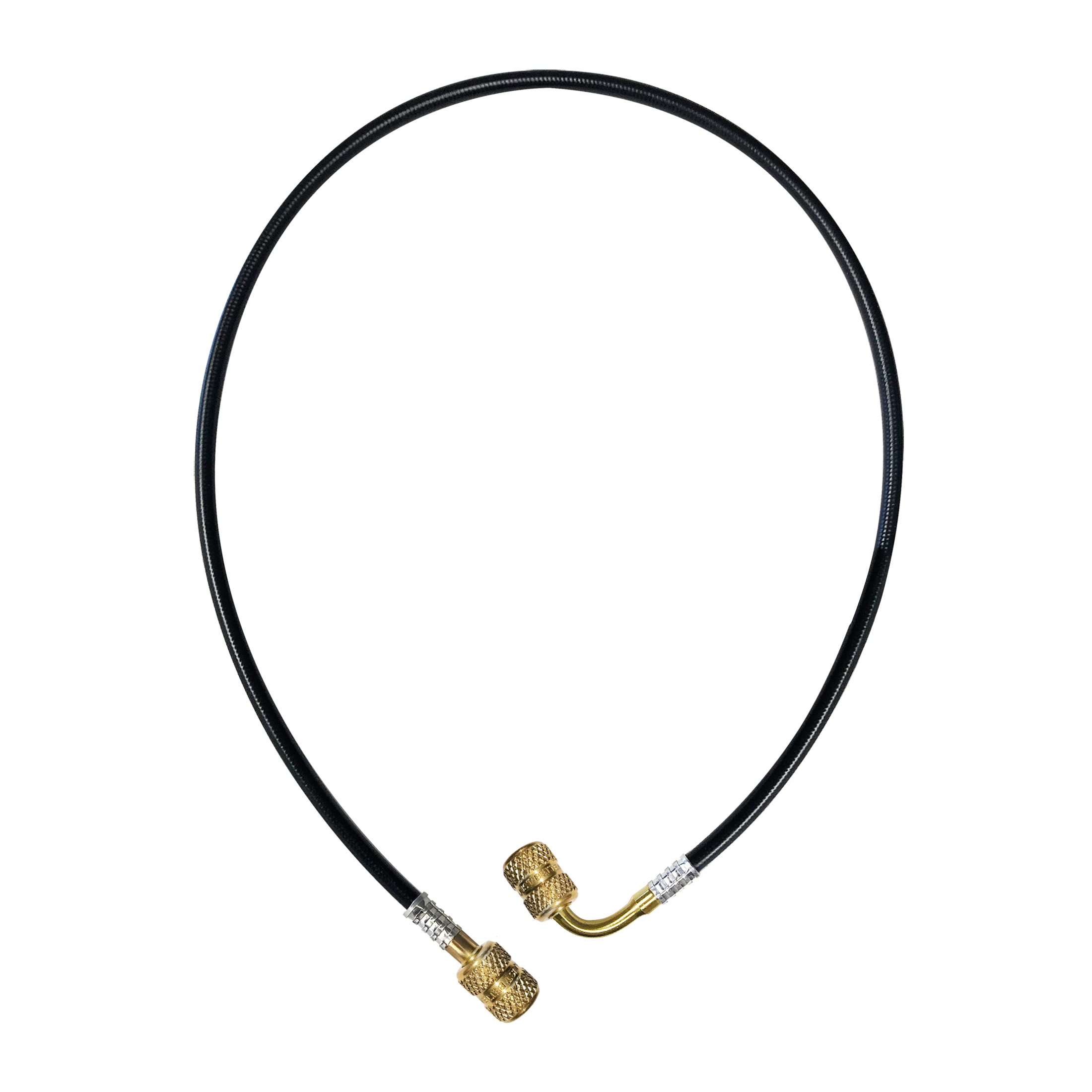

CNTL90 Series Pressure Control Hose 18"

Product Number: CNTL90-18

18" Pressure control hose

Features
Pressure control hose is constructed of a inner core of polyamide and the outer cover is vinyl. The polyamide inner core is wrapped with a synthetic fiber to give the hose pull strength. The polyamide inner lining is the reason it can withstand these higher pressure and eliminate the vibration failures of copper capillary tube installations. The higher temperature ratings up to 266°F eliminate the failures caused by maximum loads on rubber hoses.
2mm ID, Highly flexible; extremely short bending radius
1000 psi working; 5000 psi burst
Suitable for all non-corrosive refrigerants including natural gases, HFC, HFO, HC and CO2 sub-critical refrigerants and the relevant special oils such as ester- and PAG
90° x Straight, 1/4” FFL Connects
Absorbs all possible multi directional vibrations
Temp Range -40°(-40°C) to 266°(130°C)
Ozone-, UV-, and oil resistant
